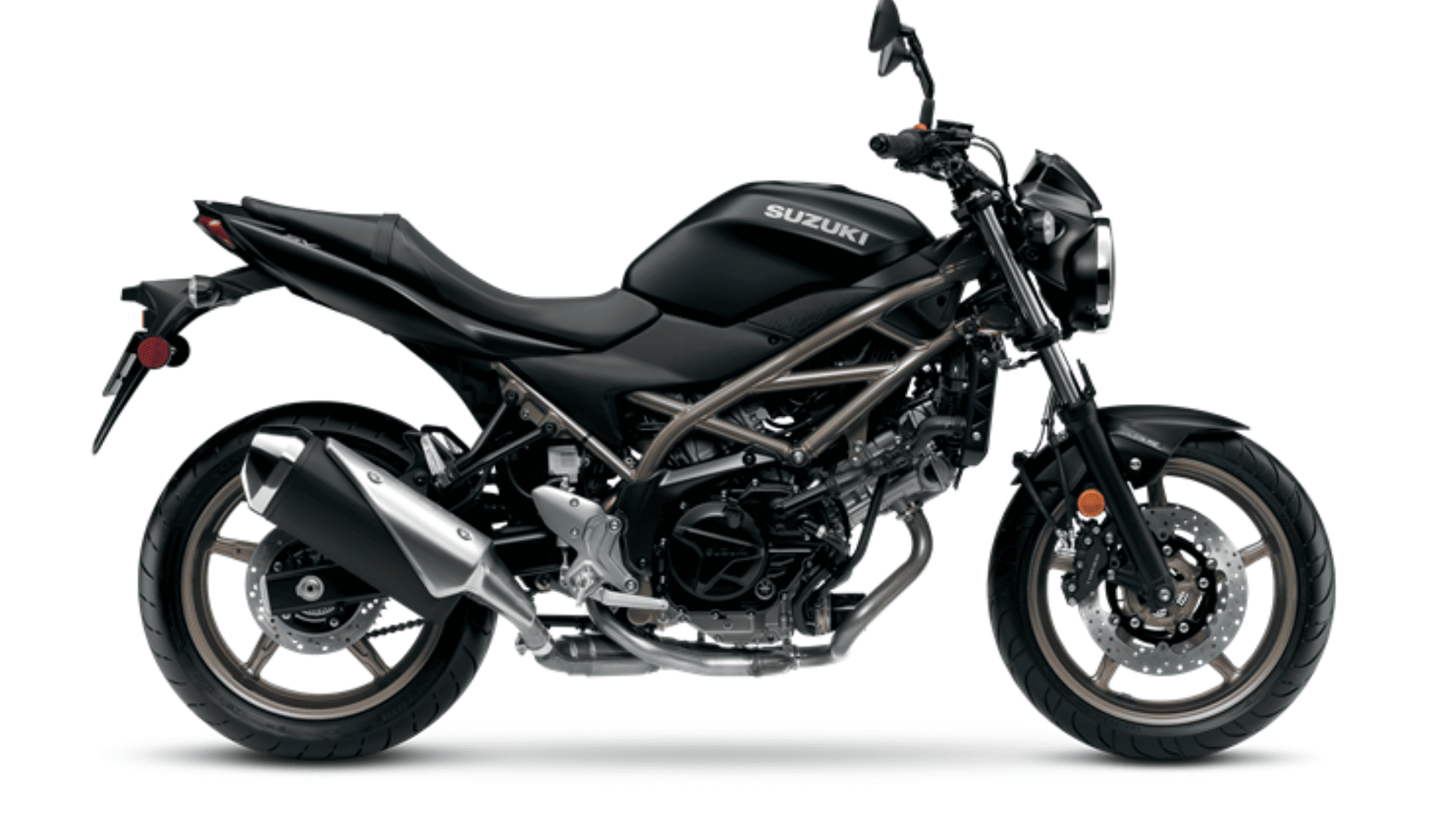

The 2025 Suzuki SV650 represents a focused evolution of a proven middleweight motorcycle. Since its introduction in 1999, the Suzuki SV650 has consistently maintained its reputation for dependable performance and balanced design. The latest version continues this legacy with improved components, modernized engineering, and refined efficiency. Its Pearl Matte Shadow Green and Metallic Matte Black No.2 finish combined with a dark gold trellis frame and color-matched wheels delivers a unified and distinctive visual identity that complements its technical capability. Every element of the 2025 model is designed for agility, durability, and precise performance on a wide range of road conditions.
Engine Architecture and Mechanical Design
The 2025 Suzuki SV650 is powered by a liquid-cooled 645cc four-stroke DOHC 90-degree V-twin engine designed to deliver smooth and consistent output through its entire rev range. Its configuration provides natural primary balance, allowing the engine to operate with minimal vibration from idle to its 10,000 rpm redline.
Suzuki engineers used Finite Element Method analysis to develop lightweight pistons that retain high rigidity under stress. Each piston features a resin-coated skirt and tinned sliding surfaces that reduce friction and wear. These refinements improve long-term durability and maintain consistent compression under varying loads. The L-shaped piston rings improve sealing efficiency and minimize blow-by gases, resulting in cleaner combustion and reduced emissions. The Suzuki Composite Electrochemical Material plated cylinders further enhance heat transfer while reducing internal drag, improving cooling performance and reliability under continuous operation.
The Dual Spark cylinder head configuration improves combustion efficiency and helps the 2025 Suzuki SV650 meet modern emission standards without compromising torque delivery. This system enables better ignition stability, contributing to lower fuel consumption and cleaner exhaust output.
Fuel Delivery and Combustion Control
The fuel injection system features Suzuki Dual Throttle Valve technology with 39mm throttle bodies that balance air intake across the rev range. A servo-controlled secondary valve regulates airflow, maintaining smooth acceleration and consistent torque delivery. Each throttle body contains ten-hole long-nose fuel injectors that enhance atomization and promote efficient combustion. The system includes O2 feedback and an intake pressure sensor that adjust the air-fuel mixture according to riding conditions, resulting in optimized performance and lower emissions.
Suzuki’s Throttle-body Integrated Idle Speed Control maintains stable idle speed and improves start-up behavior while also reducing exhaust emissions. The Low RPM Assist function, incorporated into this system, automatically adjusts engine speed during clutch engagement to help prevent stalling and improve control at low speeds.
Ignition control is managed by a transistorized system programmed for accurate spark timing. The four iridium-tipped spark plugs used in this model provide a consistent spark under various conditions, contributing to more complete combustion and extended service life. The Engine Control Module governs both ignition and fuel injection with refined calibration for smooth throttle transitions and improved efficiency.
Transmission and Power Delivery
Power from the V-twin engine is transferred through a six-speed constant mesh transmission. The gear ratios are selected for balance between low-speed flexibility and responsive acceleration at higher speeds. The multi-plate clutch system uses precise pushrod actuation for light lever effort and consistent engagement. This configuration supports smooth transitions through the gears and contributes to predictable power delivery in all riding conditions.
The chain final drive with 112 links ensures efficient power transfer while maintaining low noise and vibration levels. The overall setup reflects Suzuki’s emphasis on reliability and balanced mechanical behavior rather than aggressive tuning, making the 2025 Suzuki SV650 suitable for a wide range of riding environments.
Frame Structure and Chassis Composition
The 2025 Suzuki SV650’s frame design continues to be a key element of its character. Constructed from high-strength steel, the trellis-style frame achieves an optimal combination of rigidity and lightness. This layout not only supports stability but also contributes to the motorcycle’s compact proportions. The frame’s gold finish contrasts with the dark bodywork, emphasizing structural integrity and attention to craftsmanship.
The 2025 Suzuki SV650 weighs 437 pounds in running order, aided by its slim chassis and narrow bodywork. The seat height of 30.9 inches is among the lowest in the 600 to 800cc segment, allowing a wide range of riders to confidently reach the ground. The fuel tank, with a capacity of 3.8 gallons, is shaped to improve rider grip and mobility while maintaining a streamlined flow into the seat.
The swingarm is constructed from steel with a straightforward chain tension adjuster system. It contributes to balanced handling and efficient power delivery during cornering and acceleration. The 41mm telescopic front fork provides 125mm of wheel travel, combining responsiveness with comfort over varied surfaces. At the rear, a link-type shock absorber with a 63mm stroke provides a controlled progressive response. The spring preload is seven-way adjustable, allowing quick adaptation for additional load or passenger weight.
Suspension and Handling Stability
The suspension configuration gives the 2025 Suzuki SV650 predictable cornering behavior and comfort for daily riding. The geometry provides agility in tight turns while maintaining composure at higher speeds. The tubular steel trellis frame and balanced front-rear weight distribution create a stable base for controlled lean angles. The Dunlop® Road Smart III radial tires contribute to traction and steering precision, offering balanced performance on both dry and wet surfaces. The tire dimensions of 120/70ZR17 in front and 160/60ZR17 at the rear align with Suzuki’s focus on sharp, consistent handling without sacrificing comfort or tire longevity.
Braking System and Safety Integration
The braking system on the 2025 Suzuki SV650 features dual four-piston Tokico® calipers acting on 290mm fully floating stainless-steel front rotors. The rear brake uses a single-piston caliper on a single disc. The Anti-lock Braking System monitors wheel speed and adjusts hydraulic pressure to match available traction, helping maintain stability during sudden stops or on uneven road surfaces.
The balance between braking force and chassis dynamics reflects Suzuki’s engineering precision. The ABS unit is compact and lightweight, minimizing intrusion into the overall design while providing consistent performance under variable conditions.
Rider Interface and Instrumentation
The instrument cluster on the 2025 Suzuki SV650 is a full LCD display that eliminates mechanical needles and moving components. The layout presents essential information clearly, including speed, engine rpm, gear position, coolant temperature, fuel level, and clock. The backlight brightness is adjustable to accommodate different lighting environments. Additional indicators include trip meters, fuel consumption data, and driving range estimation.
Ergonomics are designed for comfort and command. The tubular handlebars and mid-set foot controls produce a neutral riding position suitable for extended riding or shorter commutes. The seat is shaped for support and grip, with integrated cargo retention loops positioned discreetly beneath the seat.
Lighting and Electrical Components
Lighting on the 2025 Suzuki SV650 consists of a round multi-reflector headlight with a 12V 60/55W halogen bulb that delivers strong illumination while maintaining a classic aesthetic. The rear features an LED combination tail and brake light that provides enhanced brightness and durability. Front and rear turn signals use amber-tinted lenses for clear visibility. The electrical system operates through a transistorized ignition, ensuring consistent power delivery and efficient performance.
Engineering Efficiency and Dimensional Balance
The overall dimensions of the 2025 Suzuki SV650 are 84.3 inches in length, 29.9 inches in width, and 42.9 inches in height. The wheelbase measures 56.9 inches, creating a stable yet responsive platform. Ground clearance stands at 5.3 inches, offering sufficient space for cornering clearance without compromising accessibility. These measurements combine to form a motorcycle that remains compact but structurally balanced for a variety of uses.
Every component of the 2025 Suzuki SV650 reflects Suzuki’s focus on precision. From the advanced EFI mapping to the high-efficiency radiator and coolant-cooled oil cooler, the system ensures optimal temperature control even during extended riding. The design of the air cleaner and staggered-length intake funnels contributes to enhanced midrange torque.
