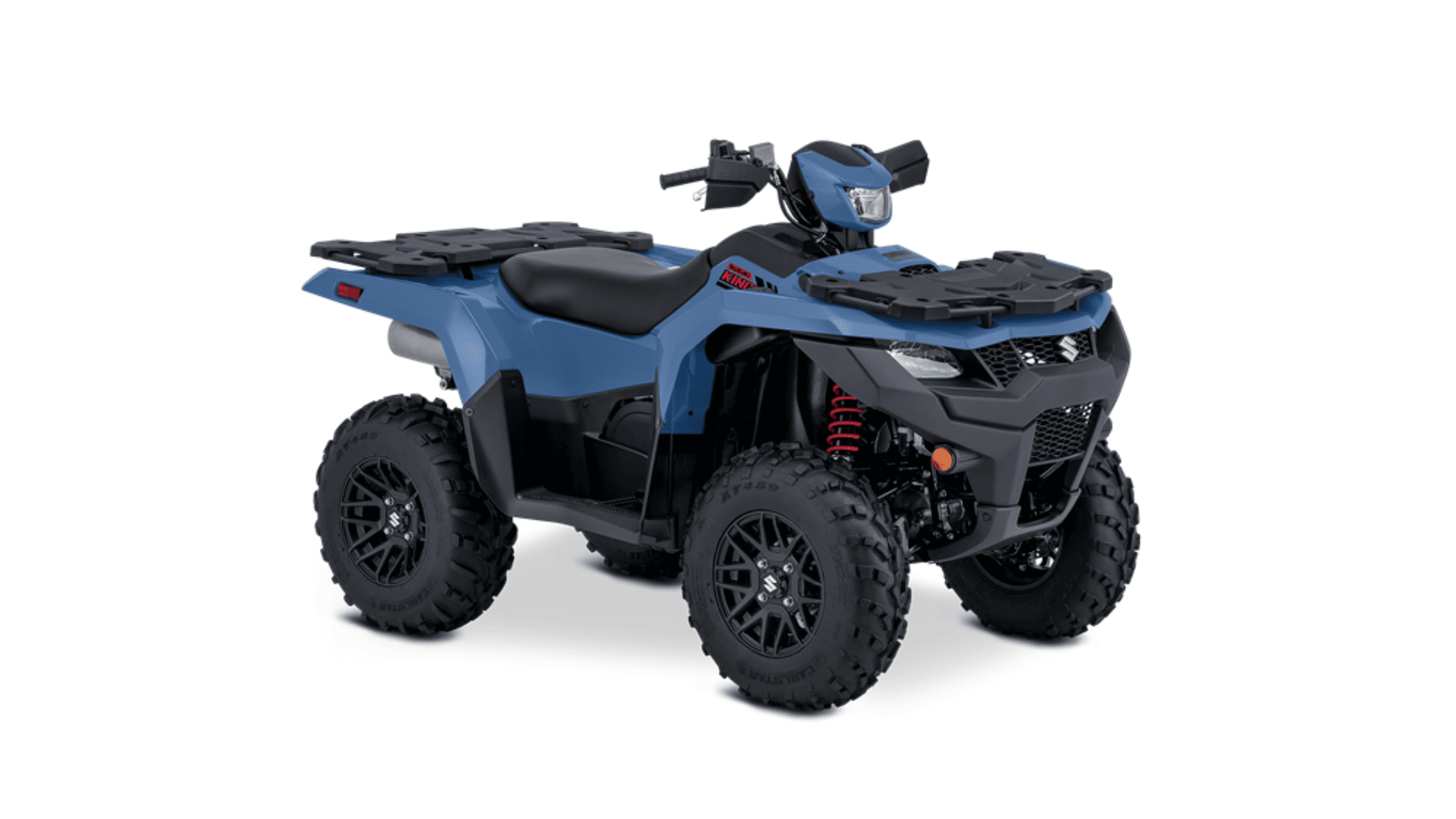

The 2025 Suzuki KingQuad 750AXi Power Steering SE is engineered for serious utility riders who demand mechanical consistency, terrain adaptability, and reliable power delivery. This model is a continuation of Suzuki’s approach to combining sport-utility ATV performance with long-term dependability. With a 722cc engine, selectable drive modes, and advanced chassis refinement, it delivers targeted functionality across work-focused and trail-riding environments. From its Cast Carbon-coated bodywork to its electronically assisted steering, the machine is built for effective performance under varied conditions.
Engine Configuration and Power Delivery
A 722cc single-cylinder, liquid-cooled four-stroke engine with a double overhead camshaft design forms the foundation of the 2025 Suzuki KingQuad 750AXi Power Steering SE. Engineered with four valves and 36-millimeter intake ports arranged for direct airflow, the setup promotes efficient combustion and optimized performance across the RPM range. Low-end torque is readily available, while mid- to high-range output remains strong and consistent. The engine’s forward-leaning orientation also contributes to a lower center of gravity, improving stability and reducing seat height for better rider control.
The cylinder is aluminum and features a composite electrochemical material coating for improved heat dissipation and wear resistance. A dual balancer shaft system reduces vibration during extended operation. Fuel management is handled by electronic fuel injection, which supports consistent throttle response in a range of conditions, including cold starts. An iridium spark plug contributes to ignition reliability and long-term efficiency.
Transmission Performance and Drive Control
The 2025 Suzuki KingQuad 750AXi Power Steering SE uses Suzuki’s QuadMatic™ transmission, a continuously variable V-belt system with automatic ratio adjustment. This unit is paired with a high and low gear range selected through a gate-style shifter on the fender. Engine braking is integrated into the CVT tuning, reducing free-wheeling when descending steep grades.
Traction management includes selectable 2WD, 4WD, and locked 4WD modes. These can be activated through push-button switches on the handlebars. When the differential lock is engaged, torque is distributed evenly across the front axle for increased grip in off-road or low-traction conditions. A speed override button allows the operator to bypass the limiter temporarily when stuck in mud or challenging surfaces.
Electronic Power Steering System
The power steering system in the 2025 model is designed with higher assist capacity than earlier versions. This allows for smoother steering input, particularly at low speeds or during load-bearing tasks. The system also absorbs vibration and reduces rider fatigue during long operation windows. The base steering geometry uses an understeer bias, which results in tighter cornering without demanding excessive rider input.
Independent Suspension with Extended Travel
The chassis employs independent double A-arm suspension at the front, providing 6.7 inches of travel. In the rear, a fully independent A-arm and I-beam configuration extends travel to 7.7 inches. Gas-charged shock absorbers are used at all four corners and feature five-way preload adjustability. This allows the suspension to be calibrated for rider weight, cargo, or terrain conditions. A rear stabilizer bar further improves cornering consistency and reduces side-to-side movement on uneven terrain.
Braking Components and Stopping Capability
Front braking is handled by dual hydraulic disc rotors paired with high-friction pads and optimized master cylinder ratios. This combination offers dependable braking force while minimizing lever effort. The rear brake is a sealed, multi-plate oil-bathed unit. It features a compact clutch-type configuration that resists contamination and lowers unsprung weight.
Frame Integrity and Underbody Protection
The structural frame of the 2025 Suzuki KingQuad 750AXi Power Steering SE is constructed from thick-wall steel tubing. Reinforced brackets are positioned in stress zones to distribute load and maintain rigidity during towing or hard landings. Full-length polyethylene skid plates offer impact protection for critical underside components. Additionally, the driveshaft housings are shielded with durable plastic guards.
Lighting and Visibility Features
The lighting system includes a centrally mounted 35-watt headlamp attached to the handlebar for directional illumination. Two additional 35-watt headlights are fixed on the front fenders and provide both high and low beams. An LED taillight ensures visibility during night operation without drawing excessive current from the electrical system. The lighting package supports trail safety and provides effective lighting coverage during equipment use or in remote areas.
Instrument Cluster and Electrical System
The digital instrument panel is multi-functional and backlit for visibility in variable lighting. It displays speed, odometer, dual trip meters, hour meter, fuel level, driving range, and time. Indicators are included for high beam, low beam, reverse, neutral, all drive modes, and warning alerts for temperature and fuel injection status. A sealed 12-volt accessory outlet is located within easy reach for powering auxiliary tools or devices. Power is supplied by a three-phase alternator system charging an 18-amp battery.
Tire and Wheel Assembly
The ATV is fitted with 25-inch Carlisle® tires. The front dimensions are 25x8-12 and the rear uses 25x10-12, all tubeless. These are mounted on lightweight cast aluminum wheels finished in matte black. The tread profile and sidewall flexibility contribute to stable grip and shock absorption on uneven terrain.
Cargo and Storage Options
Both front and rear racks are made of steel tubing coated in wrinkle paint for surface durability. Plastic covers shield cargo areas from wear and allow for quick gear setup. These covers can be removed when attaching Suzuki accessories or custom equipment. Integrated floorboards include raised footpegs and offer partial coverage from terrain debris. The vehicle includes a 4.6-gallon fuel tank with a low center mounting location. Storage capacity includes a 4-liter rear compartment, a 4-liter side compartment, and a 2.8-liter water-resistant front compartment.
Towing and Accessory Integration
The 2025 Suzuki KingQuad 750AXi Power Steering SE comes pre-configured with a receiver-style trailer hitch mount and includes a ball mount, hitch pin, and R-clip. Towing capacity is rated up to 1322 pounds. The platform is winch-ready, with factory-installed mounting points and an internal wire conduit for routing.
Bodywork and Exterior Design
The exterior panels are finished in a Cast Carbon pattern that visually distinguishes the SE variant. The angular fenders offer extended clearance for better protection against mud and debris. The panel layout is engineered for straightforward maintenance access. Key checkpoints like oil level, fuel filter, and air filter can be reached without extensive disassembly.
Ride Ergonomics and Seat Design
A T-shaped seat design supports rider movement during technical trail riding or when shifting body weight. The surface is constructed for all-weather use with grip support on the flanks. The riding position allows adequate reach to the handlebars and provides upright posture for long durations. The combination of bar height, seating position, and footpeg layout results in controlled maneuverability and reduced fatigue.
Schedule a Test Ride near Bay Area Houston, TX
Riders seeking a utility ATV with torque-focused engine response, electronically assisted steering, and versatile drivetrain settings can experience the full capability of the 2025 Suzuki KingQuad 750AXi Power Steering SE. The machine’s high-traction tire setup, rugged chassis layout, and automatic transmission with downhill engine braking make it a candidate for trail work and load-carrying tasks. For those ready to explore its functional design and rider-focused features, schedule a test ride at Stubbs Cycles near Bay Area Houston, TX. This is a practical opportunity to assess the vehicle's suspension responsiveness, power delivery, and control systems firsthand.
