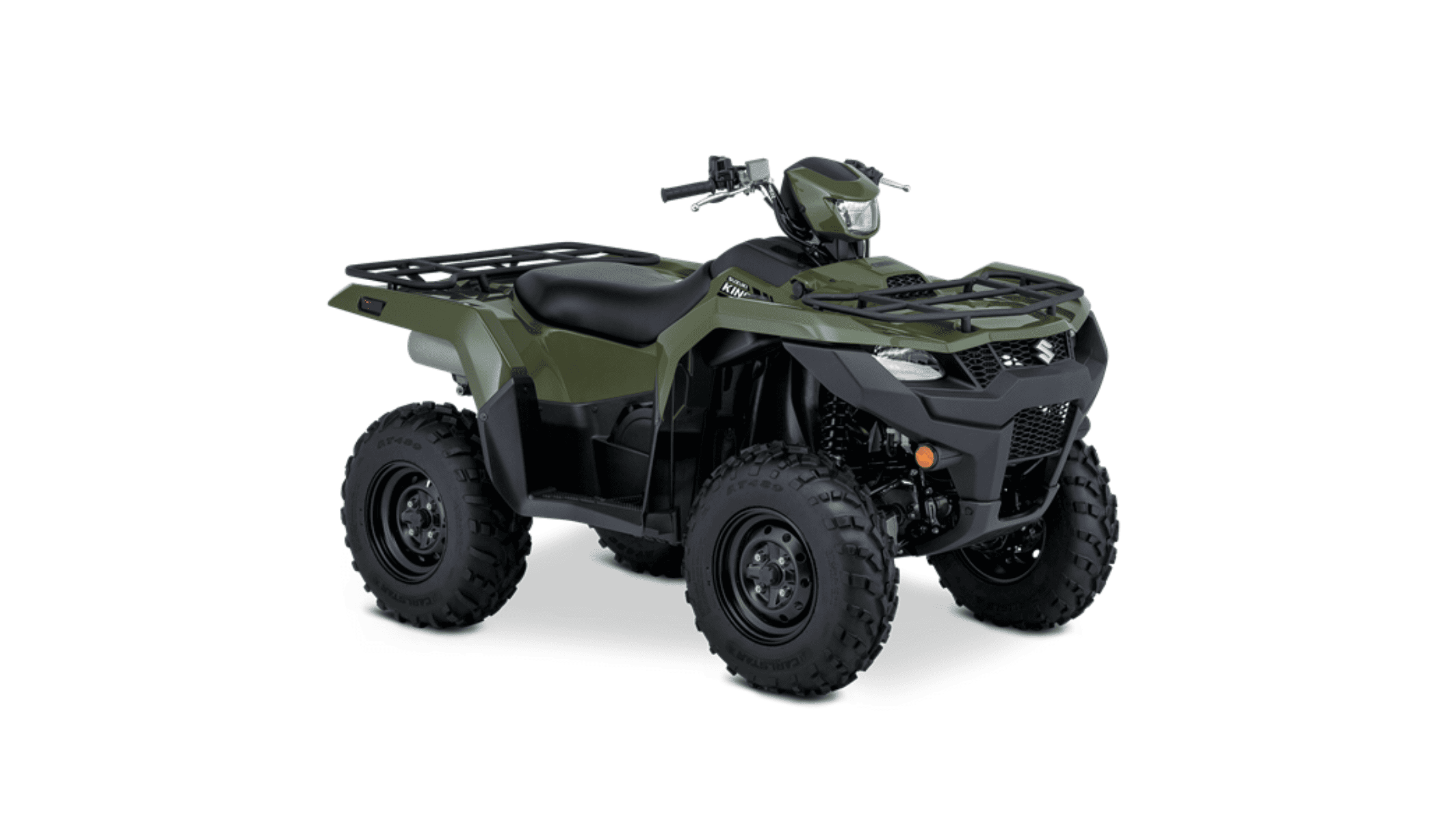

The 2025 Suzuki KingQuad 500AXi is designed to meet the performance and utility expectations of off-road riders and utility operators. Developed by the brand that pioneered the four-wheel ATV, this model focuses on delivering reliable output, consistent traction, and structural durability. It is equipped with a robust powertrain, selectable drivetrain options, and a reinforced chassis, making it suitable for work and trail use alike. Every aspect of the machine is engineered to support efficient movement across rough environments and improve operational control in technical conditions.
Power Delivery Through a 493cc Engine Configuration
The 2025 Suzuki KingQuad 500AXi is driven by a 493cc, four-stroke, single-cylinder engine. It is liquid-cooled and uses an overhead camshaft design with four valves. This layout supports strong airflow and combustion control while keeping thermal performance stable during long rides. The cylinder and head are positioned with a forward cant to lower the overall center of gravity.
The aluminum cylinder incorporates Suzuki Composite Electrochemical Material coating, which enhances heat transfer and strengthens ring sealing. The combustion chamber is optimized for fuel efficiency and consistent throttle response. A balancer shaft is used to minimize engine vibrations during acceleration and operation at cruising speeds. Engine output remains predictable across the RPM range, providing consistent drive force even in uneven terrain.
Fuel delivery is managed by an electronic injection system that adapts to altitude and temperature changes. This ensures better cold starts and consistent power regardless of environmental shifts. The ignition system is transistorized, supporting reliable spark delivery. An iridium spark plug improves combustion efficiency and is engineered for longer service intervals compared to traditional plugs.
Adaptive Transmission and Braking Control
The model uses a QuadMatic™ continuously variable transmission. It is a V-belt type with selectable high and low gear ranges. This system allows users to match the transmission behavior to trail conditions or load requirements. Engine braking is integrated to assist in speed reduction when descending slopes. The system limits free-wheeling and adds confidence in downhill scenarios.
The final drive is handled through a shaft system. Traction is managed through a combination of selectable drive modes. Riders can choose between two-wheel drive, four-wheel drive, and four-wheel drive with differential lock. All modes are controlled via push-button switches on the handlebars. An override button allows the rider to bypass the speed limiter, which can be useful when extracting the ATV from soft or muddy ground.
The front differential features a torque-sensing limited-slip function, allowing effective power delivery while maintaining manageable steering effort. The system engages predictably under varying loads, ensuring consistent behavior in traction-limited conditions.
Independent Suspension for Variable Terrain Performance
The 2025 Suzuki KingQuad 500AXi utilizes independent suspension on all four corners. The front suspension is configured with double wishbones and coil springs, paired with gas-charged, oil-damped shock absorbers. These shocks are adjustable through five preload settings. Rear suspension follows an A-arm and I-beam configuration, using the same type of adjustable shock absorbers. This setup provides 6.7 inches of wheel travel at the front and 7.7 inches at the rear.
A rear stabilizer bar with compliant bushings reduces body movement and helps maintain flat cornering behavior. It limits lateral roll without adding harshness to the ride. Ground clearance measures 10.2 inches, which supports better obstacle traversal while minimizing underbody contact.
Reinforced Frame and Chassis Architecture
To withstand continuous use in aggressive environments, the chassis is constructed using thick-wall steel tubing. Reinforced brackets are integrated into high-stress locations across the frame.
The base steering characteristics are tuned to encourage slight understeer, which helps reduce steering input effort. This setup is compatible with a higher handlebar layout, allowing for a more neutral arm position during extended use.
The floorboards are full-coverage with integrated raised foot pegs. This design supports rider stability and provides shielding from debris or terrain contact. Plastic skid plates under the chassis minimize friction while protecting mechanical components. Poly guards shield the half shafts at both the front and rear, reducing the risk of damage from trail obstacles.
Braking System and Wheel Configuration
Stopping force is delivered by dual hydraulic disc brakes at the front. These use high-friction pads and are paired with fluid lines optimized for consistent pressure modulation. The brake lever ratios have been tuned to improve feedback and reduce required effort. The rear braking system is a sealed, oil-bathed multi-disc design. It is actuated by a foot lever and operates independently of the front system.
The 2025 Suzuki KingQuad 500AXi uses 25-inch Carlisle® tires mounted on 12-inch steel wheels. The front tires are 25 x 8-12 and the rear tires are 25 x 10-12. The steel wheels are powder-coated in matte black for corrosion resistance and long-term use in dirt-heavy conditions.
Cargo and Towing Capabilities
Front and rear steel cargo racks are included and feature a wrinkle paint finish for increased scratch resistance. Both racks are compatible with Suzuki accessory cargo covers, which provide additional protection for gear and allow for modular storage solutions. These covers can be removed when direct mounting of accessories is needed.
Towing capacity is rated at up to 1322 pounds. A standard trailer hitch receiver is built into the frame. The model is also equipped with mounting points and wire conduits that simplify installation of winches or recovery equipment.
Multiple storage compartments are integrated into the bodywork. At the rear, a 4.0-liter compartment is placed in the center and accompanied by a second 4.0-liter compartment on the left side. At the front, a 2.8-liter water-resistant compartment includes a screw-on cap for quick access.
Electrical System and Instrumentation
The ATV is equipped with a three-phase charging system that supports a maintenance-free 18-amp battery. This system is designed to provide adequate power for starting and accessory operation. A 12V accessory outlet is standard and sealed for weather resistance.
Lighting includes dual 35-watt headlights mounted on the fenders and an additional 35-watt headlight on the handlebars. The lighting configuration ensures visibility across the forward path while also following the steering input for directional illumination. A low-draw LED taillight is included to improve rearward visibility in low-light conditions.
The instrument cluster is a multi-function LCD unit that provides real-time readouts for speed, distance, fuel, and operational status. It also includes indicators for gear selection, drive mode engagement, and diagnostic alerts related to temperature and fuel injection performance.
Dimensional Profile
The 2025 Suzuki KingQuad 500AXi has an overall length of 84.6 inches and a width of 47.8 inches. Height measures 50.6 inches. The wheelbase is 50.6 inches. Seat height is set at 37 inches. This geometry allows for a stable ride platform without compromising agility or maneuverability. Curb weight is listed at 694 pounds for the standard model and 697 pounds for the California-specific version. Fuel tank capacity is 4.6 gallons, positioned to maintain a balanced center of mass as the fuel level changes.
Visit Stubbs Cycles for a Test Ride
Schedule a test ride today to experience how the 2025 Suzuki KingQuad 500AXi performs under real-world conditions. With a 493cc engine, torque-managed drivetrain, and independent suspension, this ATV delivers functional capability across a range of terrain types. The responsive transmission and strong towing setup offer practical advantages for both trail use and jobsite tasks. Contact Stubbs Cycles near Bay Area Houston, TX to reserve your session and evaluate the performance of the 2025 Suzuki KingQuad 500AXi for your operational needs.
