The 2025 Honda XR150L presents a purpose-driven design built for consistent function on both pavement and rugged terrain. Its mechanical construction prioritizes durability and efficiency across diverse riding conditions. Updated visual elements in White and Gray contribute to refreshed styling, while its structural design remains centered around practical performance. The 2025 Honda XR150L is engineered for adaptability, integrating functional systems suitable for everyday commutes and off-road exploration. Riders will find its technical layout grounded in Honda’s long-standing emphasis on straightforward mechanical dependability and purpose-aligned engineering.
Powertrain Engineering and Transmission Structure
The 2025 Honda XR150L uses a 149cc air-cooled single-cylinder four-stroke engine with an overhead camshaft configuration and two valves per cylinder. The bore and stroke measure 57.3mm by 57.8mm, paired with a compression ratio of 9.5 to 1.
Fuel delivery is managed by a 22mm piston-valve carburetor, which supplies fuel-air mixture with consistency for daily use. The carburetor is designed to provide sufficient responsiveness during low-speed operations while also maintaining stable output at higher speeds. The engine pairs with a five-speed manual transmission, allowing the rider to manage power delivery through each gear ratio. Final drive is executed via a #428 chain using a 17-tooth front and 49-tooth rear sprocket, calibrated for controlled acceleration and moderate top-end speed suitable for urban and trail use.
Suspension Design and Chassis Geometry
The front suspension consists of a 31mm telescopic fork with 7.1 inches of travel. Rear suspension is managed by a single-shock system offering 5.9 inches of travel, supporting rider and passenger comfort during longer rides over uneven surfaces.
The rake is measured at 27 degrees and the trail at 4.1 inches. The wheelbase spans 53.5 inches, giving the chassis a stable footprint without limiting maneuverability. Ground clearance measures 9.6 inches, offering sufficient distance between the frame and ground to manage trail debris and uneven road conditions without sacrificing approach angles.
Braking System and Tire Dimensions
The braking system on the 2025 Honda XR150L includes a 240mm single disc at the front and a 110mm drum brake at the rear. The front and rear brakes are sized proportionally to match the motorcycle’s curb weight and expected riding conditions, ensuring consistent braking performance across different road surfaces.
The tire setup includes a 90/90-19 tire in the front and a 110/90-17 tire in the rear. Their proportions support transitional stability between surface types and contribute to suspension absorption through wider sidewalls.
Frame Features and Ergonomic Layout
The 2025 Honda XR150L includes a tubular-steel rear carrier as part of its standard configuration. The seating arrangement is built around a 32.8-inch seat height, giving the rider a slightly elevated posture that improves visibility without causing discomfort or instability during stops.
Total curb weight is recorded at 282 pounds, which includes all operational fluids and a full fuel tank. Rider footpegs are placed in a standard position for upright ergonomics, and folding passenger footpegs are included to support two-person operation when necessary.
Functional Components for Mixed-Use Operation

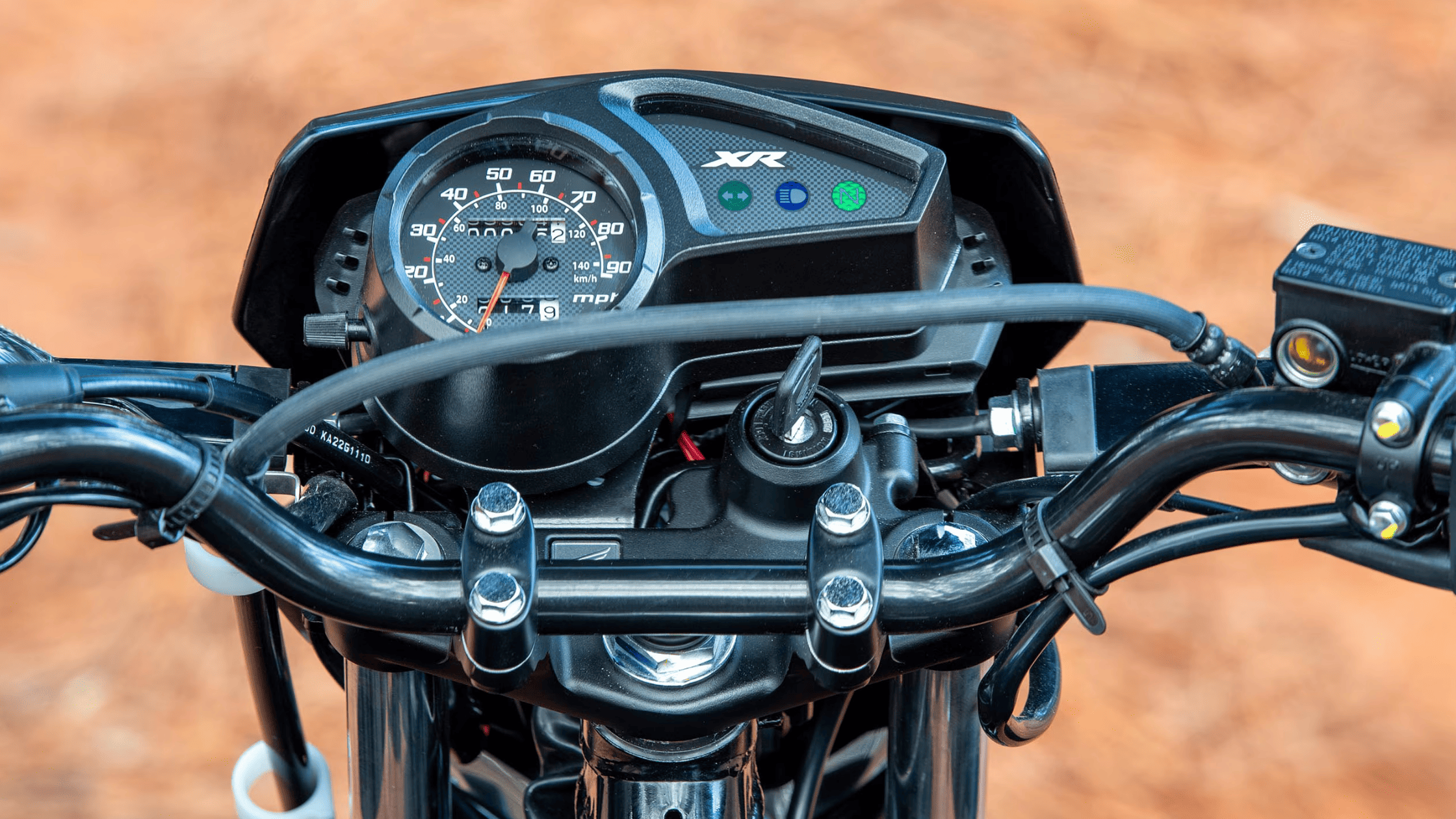

The 2025 Honda XR150L includes functional components that qualify it for street-legal use in addition to trail application. These components include a mounted headlight, turn indicators, rearview mirrors, a license plate light, and a basic speedometer. Each feature is placed to minimize interference with off-road maneuvering while still meeting visibility and legal use standards.
The inclusion of a fuel tank with a capacity of 2.8 gallons, including a 0.9-gallon reserve, allows for extended operation between refueling intervals. This capacity aligns with the fuel efficiency characteristics of the engine and extends the functional range during mixed-use operation.
Exterior Styling and Material Consistency
Color options for the 2025 Honda XR150L include White and Gray, with updated graphics to reflect the latest model year. Visual changes are applied without altering the core mechanical framework. The body panels are positioned to shield the engine and control components from debris while maintaining airflow. Graphics are integrated into the exterior design without compromising function or contributing additional weight.
Material choices throughout the model focus on durability. Paint and panel coatings are selected to withstand exposure to trail environments, including dirt, water, and light impact. Mounting components, fasteners, and brackets are reinforced to resist corrosion and retain alignment under repeated use.
Designed for Daily Use and Utility Transport
The rear tubular-steel carrier is positioned directly behind the seat and built for small-scale utility transport. The platform supports bags or secured items and is structurally reinforced to prevent flexing. This element contributes to the 2025 Honda XR150L’s use in rural, agricultural, or equipment-support contexts where small item transport is common.
Seat construction includes enough surface area to support long-distance comfort and is contoured for limited lateral shift. Padding density and seat position provide appropriate spine alignment, supporting longer rides with reduced fatigue. Ergonomic controls and accessible instrumentation maintain usability without excessive complexity, aligning with the dual-purpose intent of the model.
Visit Stubbs Cycles near Galveston, TX
Riders looking for a motorcycle that integrates strong engineering and dependable structure across both urban and trail conditions will find value in the 2025 Honda XR150L. Engine power remains consistent due to a well-balanced carburetor system and practical transmission gearing. The suspension setup manages surface irregularities with precision, and the braking system is proportioned to ensure balanced stopping on variable terrain. Each feature is selected for functional compatibility, and the overall frame maintains adaptability without requiring modification. For those near the Gulf Coast, Stubbs Cycles near Galveston, TX welcomes you to experience the technical capability of the 2025 Honda XR150L through a scheduled test ride. Explore how its engineered systems and mechanical layout deliver performance in structured and repeatable ways by contacting our team for availability and ride times.
