The 2025 Honda Rebel 500 continues its reputation as a practical and approachable cruiser, blending straightforward design with well-engineered components. The model retains the features that make it a reliable choice for new riders and those progressing from smaller machines, while introducing updates focused on improved comfort, convenience, and style. The 2025 Honda Rebel 500 balances a moderate engine size with manageable weight and a low seat height to deliver a straightforward riding experience.
Engine and Drivetrain: Efficient Design with Smooth Power Delivery
The 2025 Honda Rebel 500 is powered by a 471cc parallel-twin engine with eight valves and liquid cooling, engineered to provide consistent bottom-end torque and a smooth power curve. The cylinder head incorporates roller rocker arms and a shim-type valve adjustment system. The cam chain uses vanadium-coated pins to reduce friction and provide increased resistance to dust.
The pistons feature a striated skirt surface, which creates micro-gaps to improve oil lubrication and reduce friction. Additionally, the pistons undergo an AB 1 salt bath process to form an oxidation membrane that protects against wear. The crankshaft employs a 180-degree phasing with a primary couple-balancer positioned close to the bike’s center of gravity.
The primary and balancer gears use scissor gear designs to further reduce noise levels. The crankcases are constructed with centrifugally cast, thin-walled sleeves to minimize internal pumping losses. A 3.2-liter oil sump ensures adequate lubrication for the engine’s components during operation.
The transmission consists of a six-speed gearbox designed for smooth shifting. An assist/slipper clutch reduces clutch lever effort in stop-and-go conditions and helps control rear wheel behavior during rapid deceleration.
Frame, Suspension, and Handling: Engineered for Balance and Comfort
The frame is made from tubular steel and designed to be narrow around the rider’s inseam, which aids in maneuverability and rider confidence. The engine mounts in three points within the frame, which supports structural integrity while maintaining a slim profile.
The front suspension utilizes 41mm fork stanchions spaced 9.1 inches apart. This width provides rigidity and comfort, and the lower fork legs are finished in black for a functional, minimalist appearance. The inner pipes of the fork are buffed to promote smooth action during suspension travel. The rear suspension uses twin conventional shocks equipped with two-step preload adjusters, and nitrogen gas-charged damper tubes stabilize damping forces to improve ride quality. The bump rubbers on the shocks have been reshaped to increase resistance against bottoming.
Ground clearance is set at 5.4 inches, allowing the bike to maintain sporty lean angles. Steering geometry consists of a 28-degree rake and 4.3 inches of trail, producing balanced and neutral handling characteristics. Rider ergonomics place the arms in a relaxed, slightly outstretched position, with feet resting directly downward on mid-mounted pegs, facilitating a natural and comfortable posture for various riding scenarios.
The 2025 Honda Rebel 500 rolls on 16-inch cast-aluminum wheels fitted with Dunlop® tires sized 130/90-16 at the front and 150/80-16 at the rear.
Design Updates and Functional Styling
The 2025 Honda Rebel 500 incorporates several refinements to enhance comfort and styling without altering the overall familiar aesthetic. The handlebar now features a tapered design, measuring 25.4mm at the clamp and narrowing to 22.3mm at the grips. The hand grips are repositioned slightly inward and toward the rear.
The fuel tank retains its signature peanut shape, while both the front and rear fenders have been color-matched for a more unified appearance. The seat foam has been updated for enhanced comfort during extended rides. The shock absorber bump rubbers have been reshaped to improve resistance against bottoming impacts.
The frame design includes an innovative rear loop that separates the seat from the rear fender, contributing to the bike’s clean lines and low-slung look. The swingarm measures 45mm in diameter and is finished in black. Mechanical components are predominantly blacked out to support this visual theme.
Instrumentation and Lighting Technology
The instrument panel has been updated with an LCD meter designed to reduce screen reflection, improving legibility under direct sunlight or varying light conditions. This digital display provides relevant ride information including gear position and fuel consumption, allowing the rider to monitor performance parameters easily.

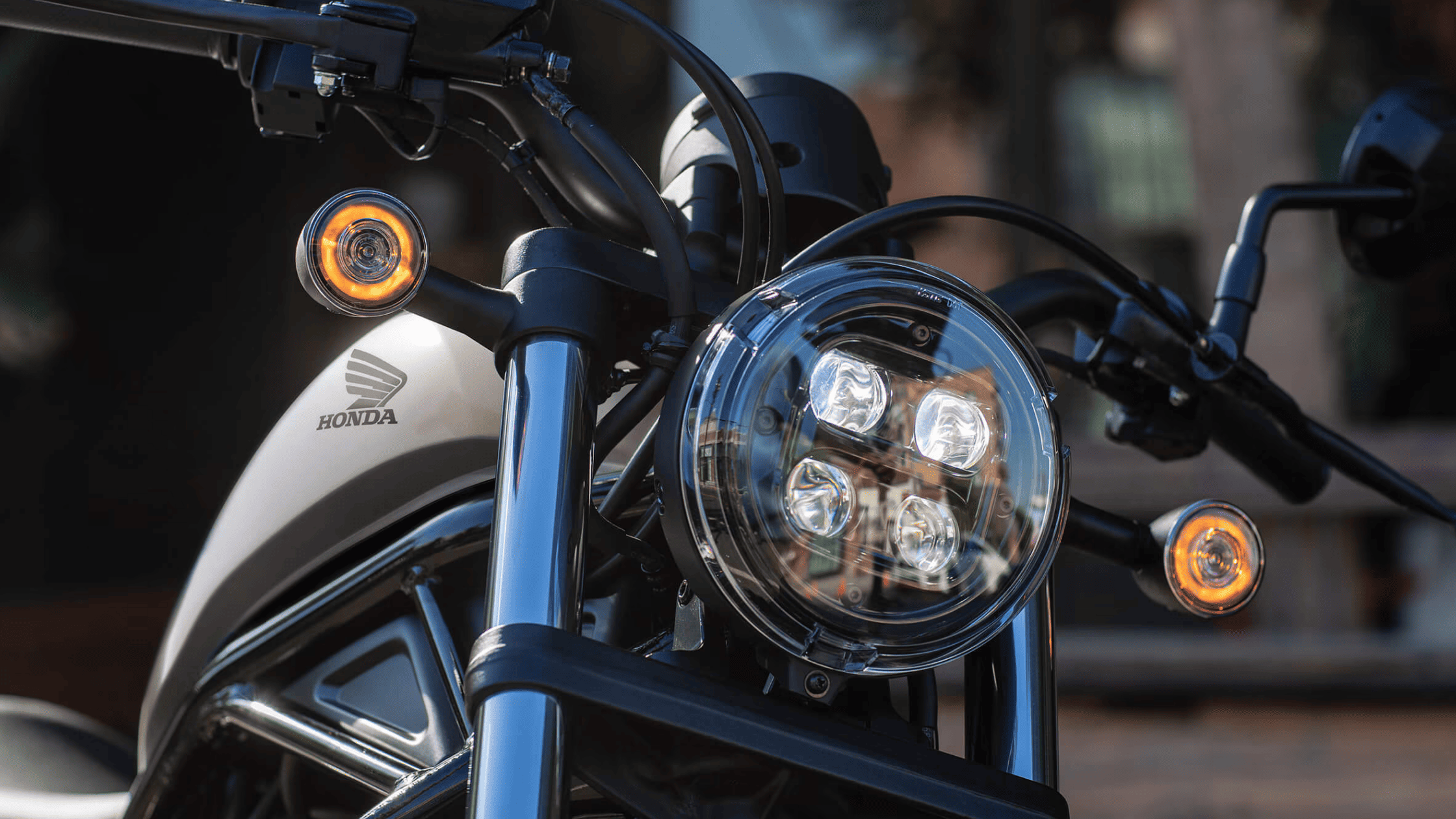

Lighting on the bike is fully LED, covering the headlight, turn signals, and taillight. The LED elements provide efficient illumination while maintaining the motorcycle’s classic styling cues.
The ignition system is located below the left side of the fuel tank, contributing to the clean lines of the bike’s design and providing straightforward access.
Safety and Control Features
The 2025 Honda Rebel 500 is available in standard, ABS, and ABS SE versions. The ABS models offer enhanced braking control by preventing wheel lock-up during sudden stops or slippery conditions.
Tire selection by Dunlop®, with sizes 130/90-16 front and 150/80-16 rear, supports traction and durability suited for the bike’s intended use as a small cruiser. The tires are mounted on cast-aluminum wheels designed to resist deformation and maintain consistent performance.
The assist/slipper clutch contributes to rider control by reducing clutch lever effort and preventing rear wheel hopping during aggressive downshifting or deceleration.
Schedule a Test Ride Today
Prospective riders seeking a well-balanced combination of manageable power, modern technical features, and reliable safety systems are encouraged to experience the 2025 Honda Rebel 500 firsthand. The updated LCD meter, LED lighting, and optional ABS contribute to a ride that is both informative and secure. Scheduling a test drive at Stubbs Cycles near Galveston, TX, offers an opportunity to assess these technical attributes in real-world conditions. This experience provides clear insight into why the 2025 Honda Rebel 500 remains a practical choice for riders looking for a straightforward and capable cruiser.
