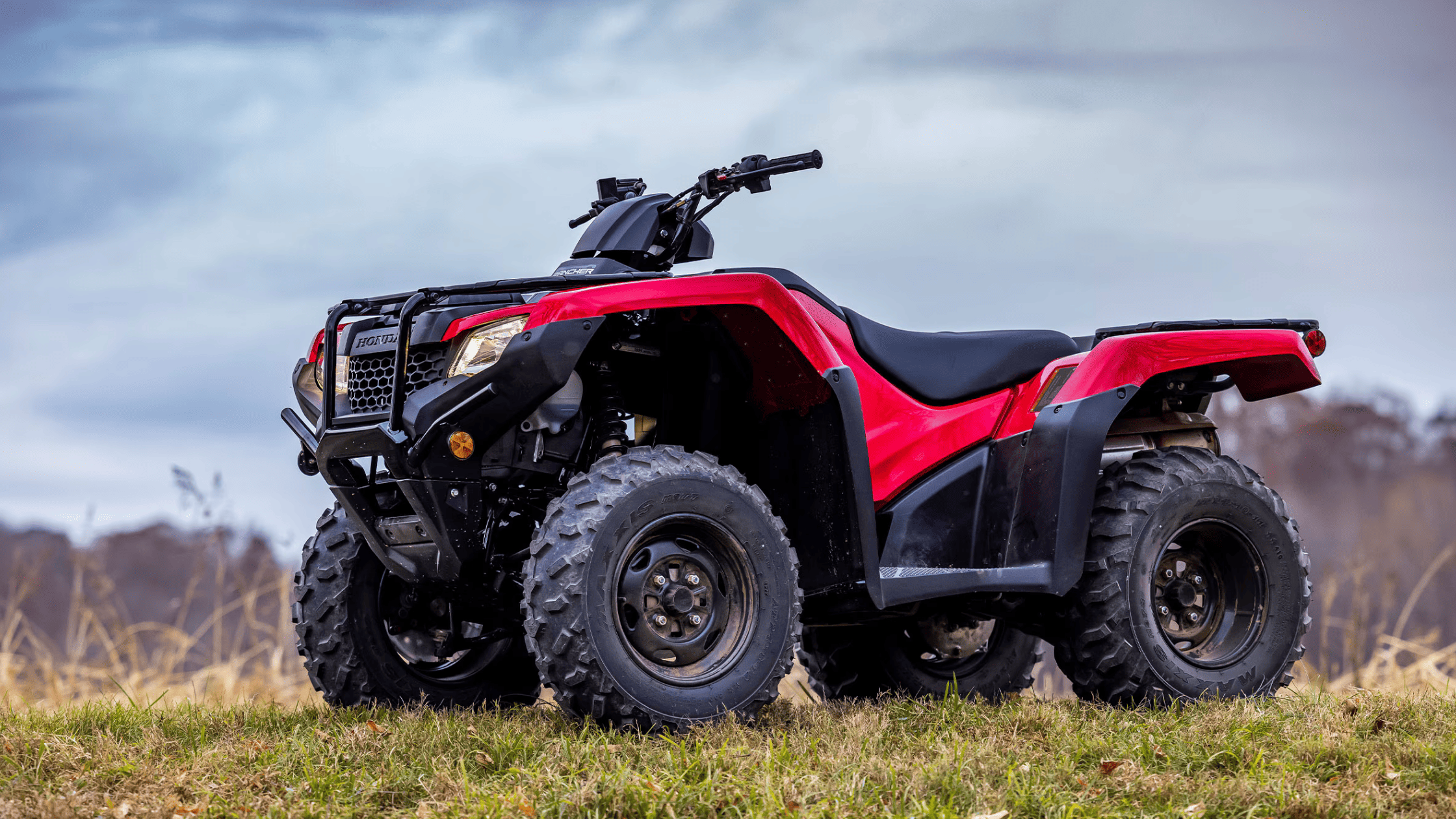

The 2025 Honda FourTrax Rancher 4x4 is a utility ATV designed for consistent function in a variety of conditions. It is available in multiple configurations, including versions equipped with automatic dual-clutch transmission, electric power steering, and independent rear suspension. Each variation is built around a steel frame structure, offering structural durability and adaptability for work and recreational environments. The model maintains a steady balance between practical power delivery and structural utility. With several configuration options, it provides clear solutions to a wide range of usage needs, supported by Honda’s tested engineering approach.
Engine Design and Mechanical Configuration
The 2025 Honda FourTrax Rancher 4x4 is powered by a 420cc liquid-cooled, wet-sump, longitudinally mounted single-cylinder four-stroke engine. The bore and stroke dimensions are 86.5mm by 71.5mm, providing a stable combustion process and consistent torque. The compression ratio is 9.9:1, balancing performance with durability. The engine features an overhead valve (OHV) system with two valves per cylinder.
The electric starter is standard, with an optional auxiliary recoil starter for specific operational preferences. Programmed Fuel Injection (PGM-FI) is integrated through a 34mm throttle body and a 12-hole injector.
Transmission Structure and Gear Operation
Transmission options include a five-speed manual gearbox with reverse or a five-speed automatic dual-clutch transmission (DCT) with reverse. The DCT version delivers electronically managed gear shifts without the use of a traditional clutch lever, allowing either automatic or manual shift modes based on rider preference. Gear transitions occur through a dual-clutch mechanism that handles odd and even gearsets independently, reducing shift time and improving mechanical continuity.
Models equipped with DCT also retain engine braking function. Power is transferred through direct front and rear driveshafts. The inclusion of the TraxLok® system enables on-demand engagement of four-wheel drive. A torque-sensitive front differential helps distribute power between the front wheels as needed.
Suspension Composition and Travel Capability
Front suspension consists of an independent double-wishbone system with 7.3 inches of travel in select configurations. Rear suspension varies depending on the model. The swingarm version includes a single shock absorber with 6.7 inches of travel. The independent rear suspension (IRS) version uses a dual-arm setup, providing 8.5 inches of travel.
Suspension geometry supports maneuverability in uneven terrain while reducing feedback to the operator. IRS models maintain tire contact more effectively across varying surfaces, improving traction. The wheelbase is 51 inches, supporting consistent weight distribution. Ground clearance reaches up to 9.6 inches, minimizing chassis interference over obstacles.
Braking Components and Wheel Configuration
The braking system features dual hydraulic front disc brakes measuring 193mm or 190mm depending on model, while the rear braking setup is available as either dual 170mm disc brakes or a 160mm sealed mechanical drum.
Tire sizes are consistent across models. Front tires measure 24 x 8-12 and rear tires 24 x 10-12. The tread pattern is suitable for a range of surface types and helps maintain grip across variable ground conditions. Tire diameter supports clearance and contributes to the stability of the ATV during turns or while carrying loads. The turning radius is 9.2 feet, allowing controlled maneuvering in confined areas.
Structural Dimensions and Cargo Specifications
Overall length is 84.5 inches, width is 47.4 inches, and height is 47.2 inches. These measurements provide a stable footprint for both trail and worksite conditions. Seat height is 35.4 inches, positioned to allow consistent control for a variety of operator sizes. Curb weight varies by configuration, with the DCT IRS EPS version weighing 686 pounds.
Fuel tank capacity is 3.9 gallons with a 1.3-gallon reserve. This setup allows for extended operation without frequent refueling. Steel front and rear racks support loads of up to 66 pounds and 133 pounds respectively. Rack design is flat and open, optimized for modular cargo management. The racks are compatible with Honda Pro-Connect accessories, which can be attached or removed without tools.
Integrated Systems and Functional Additions
Electric Power Steering (EPS) is included in select models and is engineered to reduce steering effort while filtering terrain feedback. EPS is particularly useful when carrying heavy loads or navigating uneven ground.

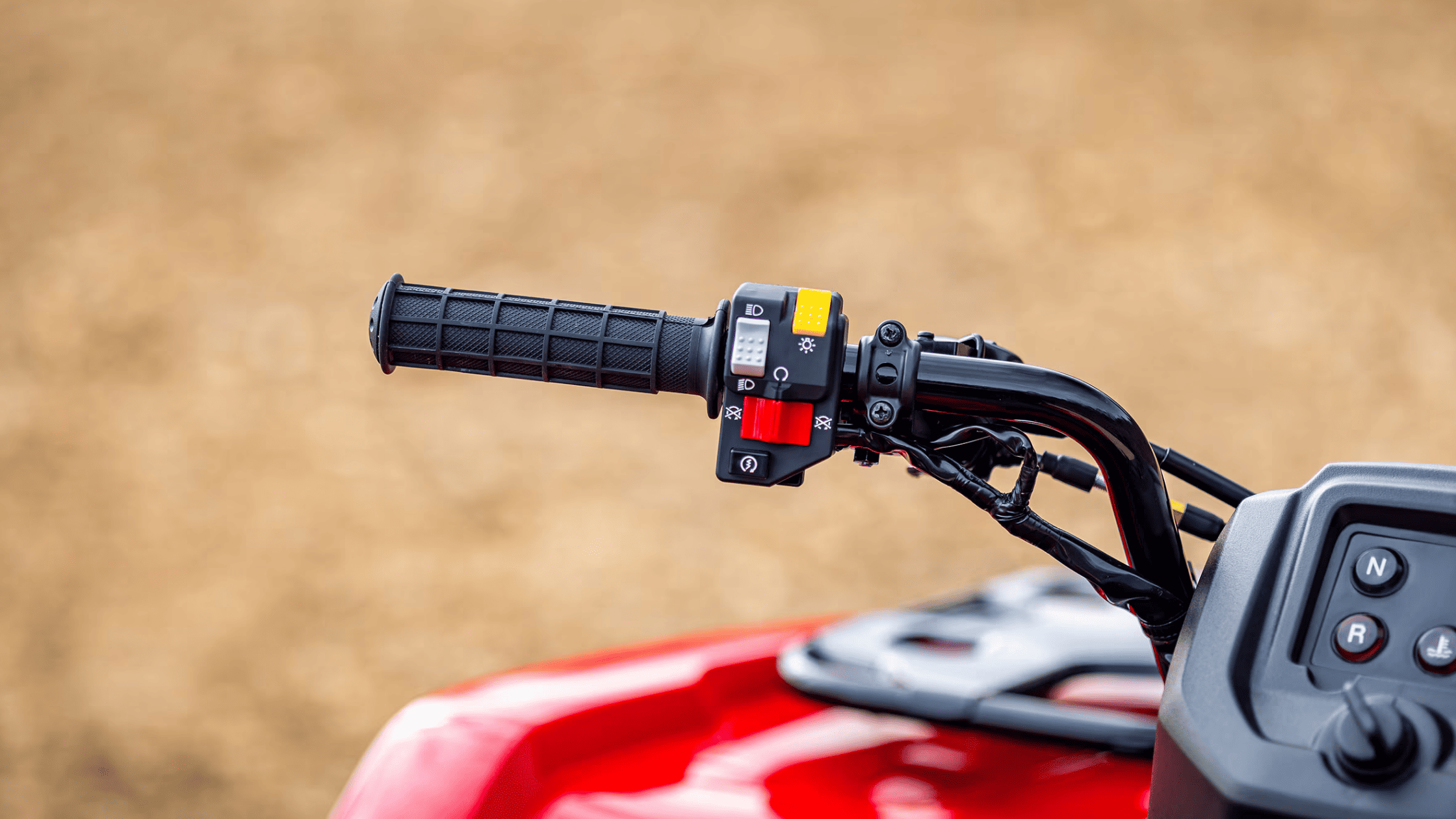

Digital instrumentation provides operational data including gear position, speed, odometer, trip meter, and fuel level. Lighting systems include sealed headlights and taillights positioned for visibility in low-light environments.
Color Selections and External Options
The 2025 Honda FourTrax Rancher 4x4 is available in multiple color options including Hero Red, Black Forest Green, Slate Gray, Blue, and TrueTimber Atera Camo. These finishes are applied to high-durability plastic body panels. Panel layout supports ease of access to service points and component inspection.
Color selection varies by configuration and is integrated with matching trim elements across the chassis.
