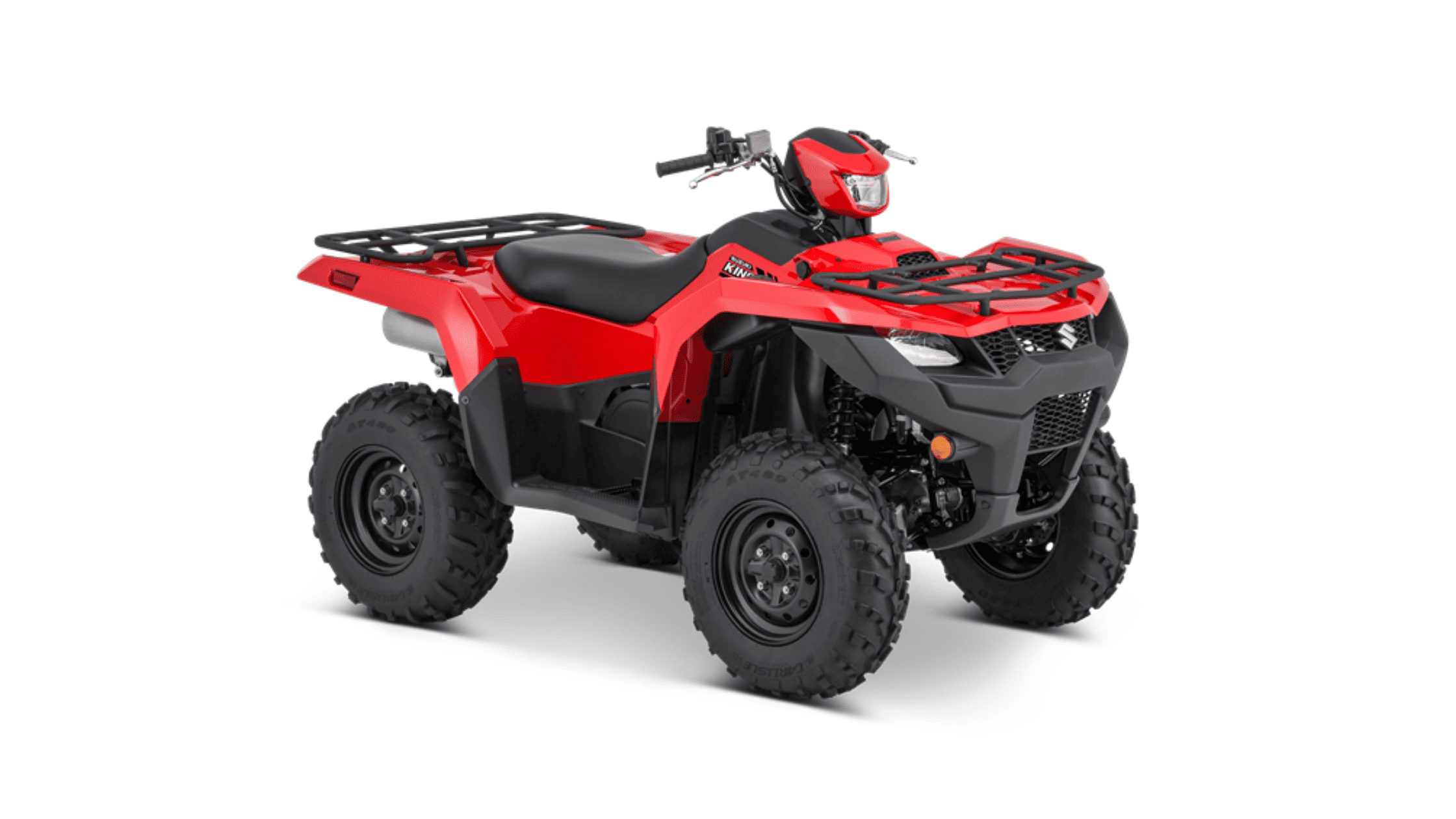

The 2024 Suzuki KingQuad 750AXi is designed to handle work-intensive tasks across uneven landscapes with a high level of mechanical consistency. It is the flagship utility-sport ATV in Suzuki's lineup, engineered for long-term performance, load handling, and off-road stability. Its powertrain, chassis architecture, and multi-mode drive system are matched to real-world applications that require traction control, responsive acceleration, and reliable towing capability. This model emphasizes functional engineering with no compromise on utility-based design.
Engine Output and Cooling Efficiency
The 2024 Suzuki KingQuad 750AXi operates on a 722cc, four-stroke, single-cylinder engine with dual overhead camshafts and liquid-cooling. The setup includes a high-volume oil pump and an integrated piston oil jet system. These components work together to maintain consistent operating temperatures.
The engine connects to an electronic fuel injection system that automatically adjusts the air-fuel mixture based on elevation and temperature changes. The KingQuad’s ECU continuously modulates ignition timing and fuel delivery, so the rider receives consistent torque across variable surface conditions.
CVT Transmission and On-Demand Drivetrain
Power is transferred through Suzuki’s QuadMatic™ continuously variable transmission, which allows the rider to engage high or low ranges without manual gear changes. This belt-driven system delivers torque progressively to minimize drivetrain shock. The transmission also includes an automatic engine braking system, which applies reverse torque through the final drive when descending slopes or decelerating on uneven ground.
Drive modes include selectable two-wheel drive, four-wheel drive, and a locked front differential setting. Mode changes are controlled through a handlebar-mounted switch that activates electronically. This push-button 4WD engagement system gives the operator flexibility when traction conditions shift between dry, soft, or uneven terrain. The front differential lock synchronizes wheel rotation speed for scenarios involving deep ruts, mud, or uneven rock surfaces where one side loses traction.
Independent Suspension for All-Around Stability
The 2024 Suzuki KingQuad 750AXi uses fully independent suspension systems on both the front and rear. The front A-arm suspension delivers 6.7 inches of wheel travel, while the rear combination A-arm and I-beam configuration allows for 7.7 inches. Each corner is equipped with large-diameter, gas-charged shock absorbers with five-way spring preload adjustability.
A rear stabilizer bar with compliant bushing mounts helps minimize body roll and lateral movement during turns or when riding with cargo. The ground clearance is measured at 10.2 inches, which supports rock and log crossings without undercarriage interference.
Braking Components Designed for Utility Use
The front wheels are equipped with dual hydraulic disc brakes. These use large calipers and high-friction brake pad material to ensure consistent deceleration, even during extended downhill operation or while hauling cargo. The rear brake is a sealed multi-plate system located inside the rear axle housing. It is oil-cooled and uses a clutch-type design that minimizes exposure to debris, water, and trail contaminants.
This layout allows for strong rear braking performance while also reducing the number of exposed moving parts. Because the braking components are internal, the need for frequent service or pad replacement is reduced.
Dimensions and Vehicle Weight Distribution
The overall length of the 2024 Suzuki KingQuad 750AXi is 84.6 inches. Its width is measured at 47.8 inches and its height at 50.6 inches. With a wheelbase of 50.6 inches, the chassis provides stability over dips and slopes while maintaining maneuverability around trees, rocks, or equipment. The curb weight of the standard model is listed at 705 pounds, while the California-compliant version is slightly heavier at 708 pounds.
Fuel is stored in a 4.6-gallon tank that is positioned low in the chassis to maintain a balanced center of gravity. The seat height is 36.2 inches, allowing for easy mounting and dismounting while providing a natural leg position when standing during aggressive off-road navigation.
Electronics, Lighting, and Instrumentation
The 2024 Suzuki KingQuad 750AXi includes a multi-function LCD. The digital readout shows the speedometer, odometer, dual trip meters, fuel level, engine hour meter, and drive mode selection. It also displays time and service intervals. LED indicator lights show current gear position, neutral, reverse, 2WD or 4WD engagement, and if the differential lock is activated.
Lighting equipment includes dual halogen headlights, mounted both on the front fenders and the handlebars. This dual setup ensures illumination remains consistent even when the rider turns the handlebars sharply. A rear LED tail light improves visibility from behind and offers high durability during all-weather riding. The 2024 Suzuki KingQuad 750AXi is also equipped with a 12V DC accessory outlet positioned near the handlebars for powering GPS units, mobile devices, or additional tools.
Utility Features and Cargo Readiness
The front and rear cargo racks are constructed of steel and finished with black resin covers. These protect the surfaces during loading and can be removed if mounting accessories or cargo boxes directly to the racks. Tie-down points are integrated into the rack frames, and the overall rack layout is designed to support modular configurations depending on the task.
The frame itself is a high-tensile steel tube chassis reinforced with additional gussets and supports near the engine cradle and swingarm pivots. The frame geometry is intended to resist flex under load. Full floorboards and integrated front and rear splash guards prevent debris from contacting the rider’s legs or entering the engine bay. The ATV also features a towing hitch bracket pre-installed on the rear frame.
Schedule a Test Ride Today
Purpose-built for serious tasks, the 2024 Suzuki KingQuad 750AXi features a 722cc DOHC engine, adjustable independent suspension, and selectable 4WD with differential lock for confident utility performance. Its low-range capability, fuel-injected throttle response, and stable braking system are engineered for demanding workloads and uneven terrain. Riders looking to assess real-world capability can visit Stubbs Cycles near Bay Area Houston, TX, for a closer look. Experience how this ATV handles trail conditions, load shifts, and rugged terrain with consistency. Schedule your test ride today and see how durability and control come together in the 2024 Suzuki KingQuad 750AXi.
